5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission

  • 5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
  • 5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
Lieu d'origine Guangdong, Chine
Nom de marque JINPAT
Numéro de modèle LPKS025-0501
Quantité de commande min 1
Prix $130

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Circuits 5circuits Tension nominale 24VAC / DC
Note actuelle 1A par circuit Matériau de contact Or à l'or
Vitesse de travail 0 ~ 50rpm Tension de fonctionnement 380 V CC/CA
Résistance diélectrique ≥1000V@50Hz (courant) ≥500V@50Hz (signal) Matériel de logement Noir d'oxydation de l'alliage d'aluminium
Résistance à l'isolation 500 MΩ à 500 V CC (courant) 100 MΩ à 300 V CC (signal) Longueur de fil Fil de stator : 700 mm Fil de rotor : 700 mm
Température de fonctionnement -20 ° C ~ + 60 ° C Humidité ≤60%RH
Indice IP IP54 Épaisseur 6mm
Vitesse de rotation Haut
Mettre en évidence

5 Circuits Pancake Slip Ring

,

360° Rotation Slip Ring

,

24VAC/DC Voltage Rating Pancake Slip Ring
Description de produit
5 Circuit Pancake Slip Rings with Gold-Gold Contact Wide Range Temperature
Product Overview

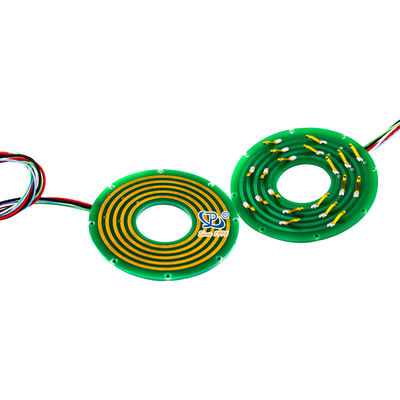

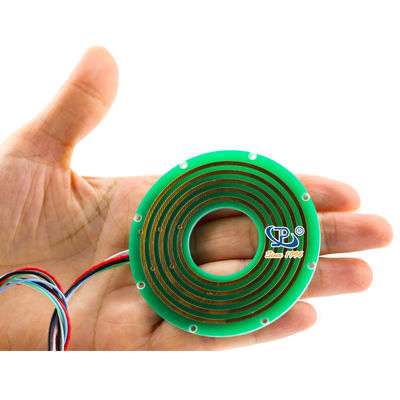

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, ideal for rotation systems with limited vertical installation space. These compact units combine copper rings and brush contacts around a central hole for maximum space efficiency.

Key Features
  • High rotating speed capability
  • Reliable gold-to-gold contact with minimal noise
  • Continuous 360° power and signal transmission
  • Stable connection without interference or drops
  • Compact pancake design saves vertical space
Product Advantages
  • Pre-configured photoelectric encoder option
  • Choice of solid or hollow shaft configurations
  • Rapid delivery available
  • Custom engineering solutions
Technical Specifications
Circuits 4 circuits × 10A + 9 signal circuits Working Speed 0-50 rpm
Working Voltage 380V DC/AC Contact Material Gold to gold
Dielectric Strength ≥1000V@50Hz (Current)
≥500V@50Hz (Signal)		 Housing Oxidation black aluminum alloy
Insulation 500MΩ@500VDC (Current)
100MΩ@300VDC (Signal)		 Wire Length Stator/Rotor: 700mm each
Temperature Range -20°C to +60°C Installation Method Stator fixed on customer spindle
Humidity ≤60% RH IP Rating IP54
Typical Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display mechanisms
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission 0
Company Highlights
  • 12,000+ sqm production facility with 500+ employees
  • Recognized as National High and New Technology enterprise
  • Holder of 69 technology patents
  • 20+ years experience since 1996
  • 10,000+ successful designs across industries
  • Global partnerships with major enterprises
  • Free custom engineering solutions
5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission 1 5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission 2
Frequently Asked Questions

What is a slip ring?
An electromechanical device enabling power/signal transmission between stationary and rotating structures, eliminating dangling wires and improving system reliability.

What slip ring types are available?
Our portfolio includes electrical slip rings, signal transmission models (USB/Fiber optic), pneumatic/hydraulic unions, and fully custom solutions.

How to select the right slip ring?
Consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineers can assist with selection.

Do you offer custom solutions?
Yes, our engineering team develops tailored solutions for unique applications. Contact us with your requirements for a customized proposal.

Contact JINPAT for custom slip ring solutions
