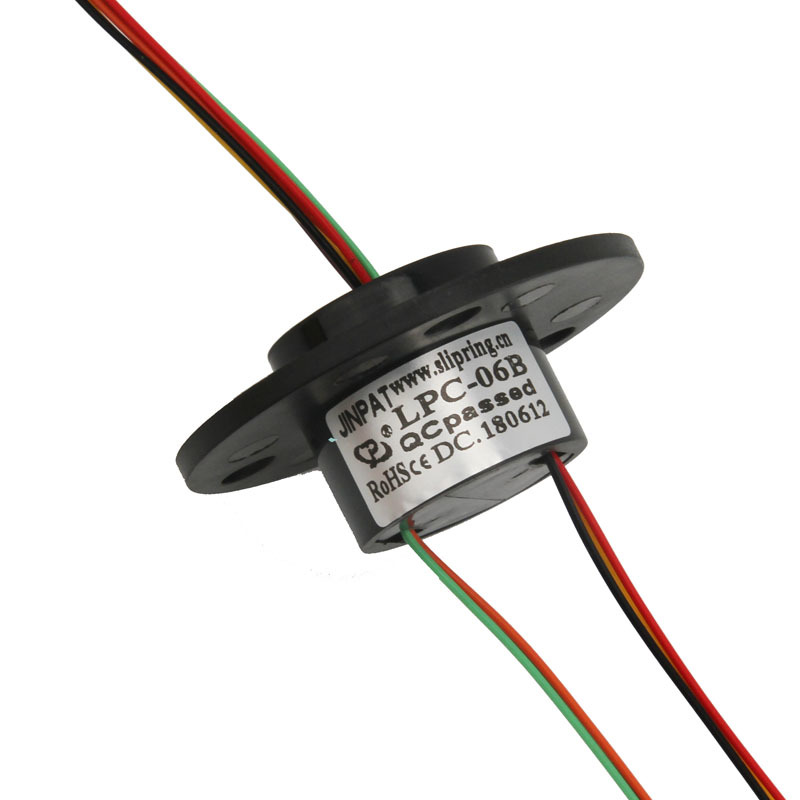

6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Grade de protection | Ip54 | Vitesse de travail | 300 tr / min |
|---|---|---|---|
| Circuits | 6 | Note actuelle | 2A ou plus haut |
| Tension | 240vac | Température de travail | -40~+80℃ |
| Matériau de contact | Or à l'or | Spécification de fil | AWG28 #, téflon plaqué en argent, ul |
| Longueur du fil de plomb | Rotor : 250mm ; Redresseur : 250mm | Isolation | 1000mΩ @ 500vdc |
| Résistance diélectrique | / / | Bruit électrique | / / |
| Résistance aux contacts | très bas | Stabilité de fonctionnement | Haut |
| Couple | Faible | ||
| Mettre en évidence | 6 circuit gold contact slip ring,2A 300 RPM slip ring,LPC-06B rotary slip ring |
||
Description de produit
Mini Type Wind Turbine Slip Rings 6 Circuits 2A 300 RPM
Miniature Capsule Slip Ring, 6 Channel Flat Slip Ring
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Typical Application | Rotary Table |
| Optional | Rotating Speed |
| Contact Material | Gold-Gold |
| Features | Very Low Contact Resistance |
Product Description
Bargain Price Only in Alibaba
The LPC-06B capsule slip ring/6 channel flat slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components.
This standard off-the-shelf unit features gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.
LPC-06B Slip Ring Parameters
| Parameter | Value |
|---|---|
| Protection Grade | IP54 |
| Working Speed | 300 RPM |
| Circuits | 6 |
| Current Rating | 2A or higher |
| Voltage | 240VAC |
| Working Temperature | -40°C to +80°C |
| Electric Contact Material | Gold to Gold |
| Wire Specification | AWG28#, silver plated Teflon, UL |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Insulation | 1000MΩ@500VDC |
LPC-06B Slip Ring Applications
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
- Monitoring systems
- Electrical testing equipment
- Military rotary tables
- Robotics
- Rotating platforms
- Display and demonstration equipment
- Instruments and meters
LPC-06B Slip Ring Features
- High durability and long life
- Very low contact resistance
- Compatible with data bus protocols
- Smooth operation and high stability
- Low torque requirements
- Supports various data signal types
- Compact structural design
Product Visuals
Manufacturer Advantages
JINPAT Electronics provides free custom slip ring solutions, creating propulsion for your technology:
- 12,000+ square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with renowned enterprises
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom solutions for diverse equipment requirements
- Fast delivery capabilities
Typical Applications
