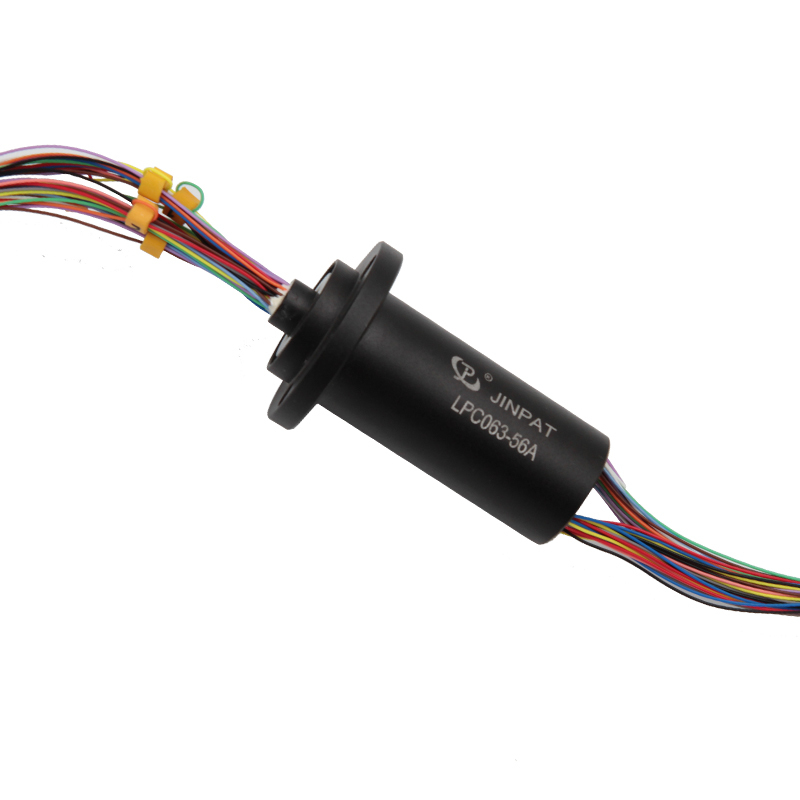

JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm

  • JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm
Lieu d'origine Guangdong, Chine
Nom de marque JINPAT
Numéro de modèle LPC063-56A
Quantité de commande min 1
Prix $285

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Circuits Circuit 56 Vitesse rotative 0-300rpm ou plus haut
Température de fonctionnement -20 ℃ ~ + 60 ℃ (industriel) Humidité opérationnelle 60% RH ou plus
Tension 240V VC/DC Capacité actuelle 2a par circuit
Matériau de contact Métal précieux Matériel de logement Alliage en aluminium
Résistance diélectrique ≥500vac @ 50Hz (p), ≥100vac @ 50Hz (s) Couple ≤ 0,88 g.m.
Résistance à l'isolation ≥ 100mΩ @ 500 VDC (P), ≥10mΩ à 100 VDC (S) Type de fil AWG30 # teflon ou autres
Longueur de fil 250 mm (facultatif) Fluctuation de la résistance dynamique ≤ 35 MΩ
Durée de vie Personnalisable
Mettre en évidence

56 circuit electrical slip ring

,

240V 2A rotary slip ring

,

300rpm industrial slip ring
Description de produit
JINPAT Electrical Slip Ring - 240V 56 Circuits 2A
Product Specifications
Attribute Value
Type Accessories
Circuits 56 CKT
Rotating Speed 0-300rpm or higher
Temperature Industrial: -20℃~+60℃
Humidity 60%RH or higher
Product Description

Special Offer Available Only on Alibaba

The LPM micro-capsule slip ring integrates 30 or more circuits with optional outer diameters ranging from 12.5mm to 16mm. This series features advanced military-grade surface treatment technology, offering high precision, compact design, and easy assembly. The gold-to-gold contact ensures low resistance and extended service life.

Key Features
  • Compact size for space-constrained applications
  • Gold-to-gold contact for superior conductivity
  • Low resistance for efficient power transmission
  • Extended service life for reduced maintenance
  • Multifarious signal integration capability
Customization Options
  • Rotating speed adjustment
  • Life span specifications
  • Protection grade selection
  • Number of circuits configuration
  • Current capacity variations
  • Size modifications
  • Housing material options
  • Mass production capability
Primary Applications
  • Robotic vacuum systems
  • Rocker camera mechanisms
  • Petroleum and mining platforms
  • Testing equipment
  • Electrical testing devices
  • Medical instruments
Technical Parameters
Electrical & Electronics Mechanical Environmental
Circuits 56 CKT Rotating Speed 0-300rpm or higher
Current 56×2A Temperature Industrial: -20℃~+60℃
Military: -50℃~+80℃
Voltage 240V VC/DC Contact Material Precious Metal
Housing Material Aluminum Alloy Humidity 60%RH or higher
Dielectric Strength ≥500VAC@50Hz(P)
≥100VAC@50Hz(S)		 Protection Grade /
Insulation Resistance ≥100MΩ@500VDC(P)
≥10MΩ@100VDC(S)		 Torque ≤0.88 g.m (for reference)
Dynamic Resistance Fluctuation ≤35mΩ Wire Type AWG30# Teflon or others
Wire Length 250mm (optional)
Life Span Customizable
Model Comparison

The LPC063-56A compact slip ring shares the same number of channels with LPC-56A, differing primarily in size and certain properties. The LPC063-56A measures only 63mm in length, with a rated voltage of 110V (compared to LPC-56A's 220V) and a reduced current rating of 1.5A per channel. For high-capacity transmission requirements, JINPAT offers comprehensive solutions.

Company Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and worldwide agents
  • 10,000+ successful designs across civil, military, commercial, and industrial applications
  • Established in 1996 with over 20 years of R&D and production experience
  • Free custom slip ring solutions tailored to specific equipment requirements
  • Fast delivery service
JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm 0
Frequently Asked Questions
What do we do?

We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures, improving mechanical performance while eliminating damage-prone dangling wires.

What kinds of slip rings do we provide?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series production
How do I choose a slip ring?

Selection requires details about your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting type. For custom solutions, our engineering team provides expert guidance.

Do you provide custom slip rings?

Yes, our engineers develop tailored solutions for unique requirements. Contact us to begin the customization process.
