Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations

  • Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations
  • Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations
  • Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations
Place of Origin China
Nom de marque JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPA000-03700-1PE-0615-F006
Minimum Order Quantity 1pcs
Prix negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Supply Ability 100 units/week

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Name Marine Winch Slip Rings Insulation Resistance Power ring: ≥ 100M Ω @ 2500VDC Signal loop: ≥ 100M Ω @ 250VDC
Voltage 6600VAC/220V Protection level IP56
Working humidity ≤95%RH Rotation method The electric brush remains stationary while the ring rotates
Speed 0~30rpm
Mettre en évidence

Marine winch slip ring 700A

,

Offshore slip ring IP56

,

Rotary slip ring 6MW
Description de produit
Marine Winch Slip Ring 6MW 700A IP56 for Offshore
Product Overview

JINPAT offers premium marine winch slip rings with two power options: a high-capacity 6MW model for demanding offshore operations and a 50kW model for standard requirements. Both ensure stable electrical energy and signal transmission for safe, efficient vessel operations.

Key Specifications
Attribute Value
Name Marine Winch Slip Rings
Insulation Resistance Power ring: ≥ 100M Ω @ 2500VDC
Signal loop: ≥ 100M Ω @ 250VDC
Voltage 6600VAC/220V
Protection level IP56
Working humidity ≤95%RH
Rotation method The electric brush remains stationary while the ring rotates
Speed 0~30rpm
Product Features
  • High voltage capacity (withstand voltage: 6600VAC@50Hz)
  • High current handling (short-circuit current: 35kA)
  • Exceptional stability (temperature rise fluctuation less than 1°C)
  • Robust construction for harsh marine environments
  • Continuous rotation without power or data interruption
Technical Specifications
Electrical & Electronics
Voltage 6600VAC/220V
Electric current 700A * 3 channels (power)
PE * 1 channel (power)
15A * 6 channels (signal)
Dielectric strength 30000VAC@50Hz(P)
500VAC@50Hz(s)
Insulation resistance Power Ring: 100M Ω @ 2500VDC
Signal loop: 100M Ω @ 250VDC
Mechanical
Speed 0~30rpm
Rotation method The electric brush remains stationary while the ring rotates
Installation method /
Wire length Based on the external drawing
Environmental
Protection level IP56
Working temperature -20°C~+45°C
Working humidity ≤95%RH
LPA000-0250-FO04 - 15T Cable Towing Winch

This marine winch slip ring is engineered for offshore operations with 50KW power capacity. Features excellent corrosion resistance and anti-interference capability for stable performance in harsh marine environments.

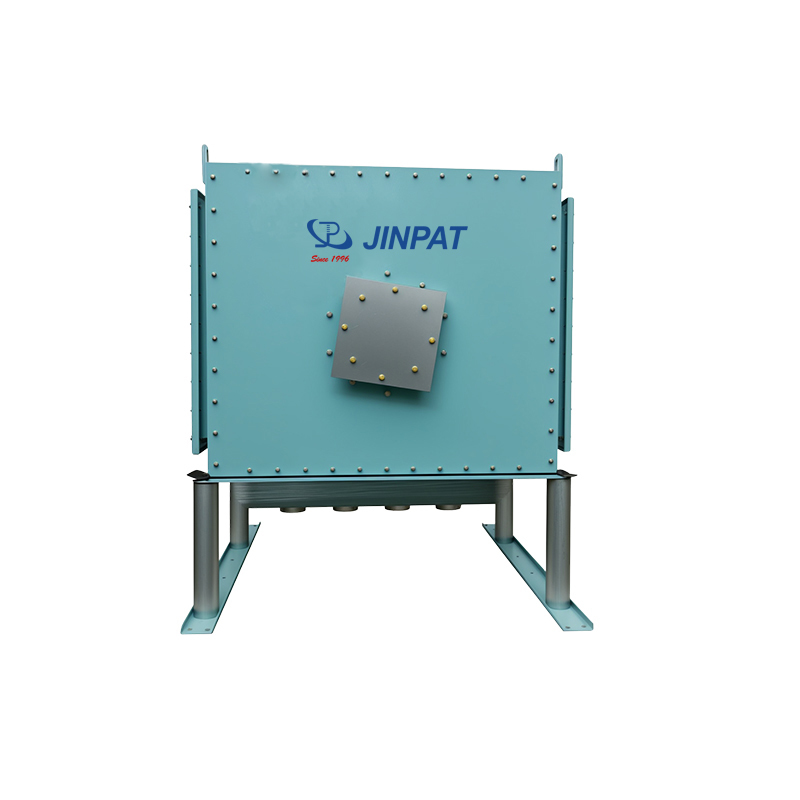

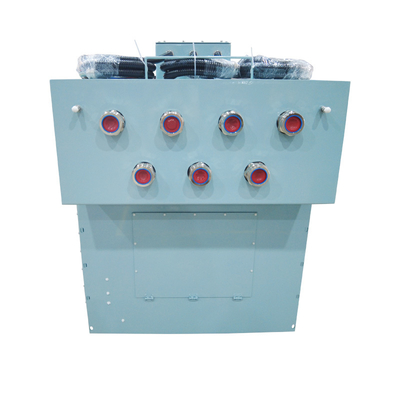

Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations 0 Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations 1
For more details about this slip ring product, please contact JINPAT. We will provide you with a satisfactory custom solution!
