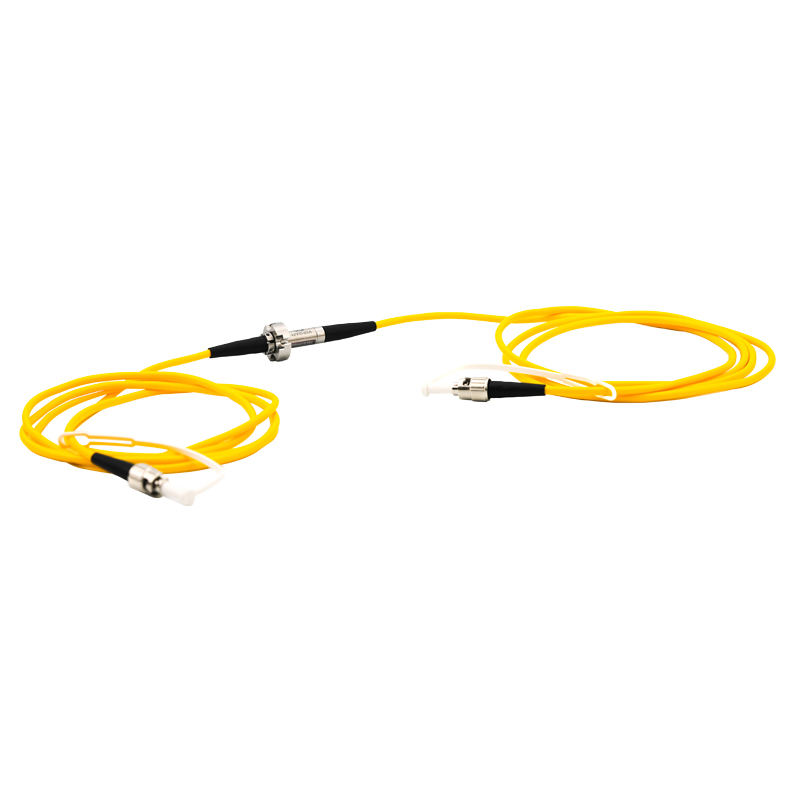

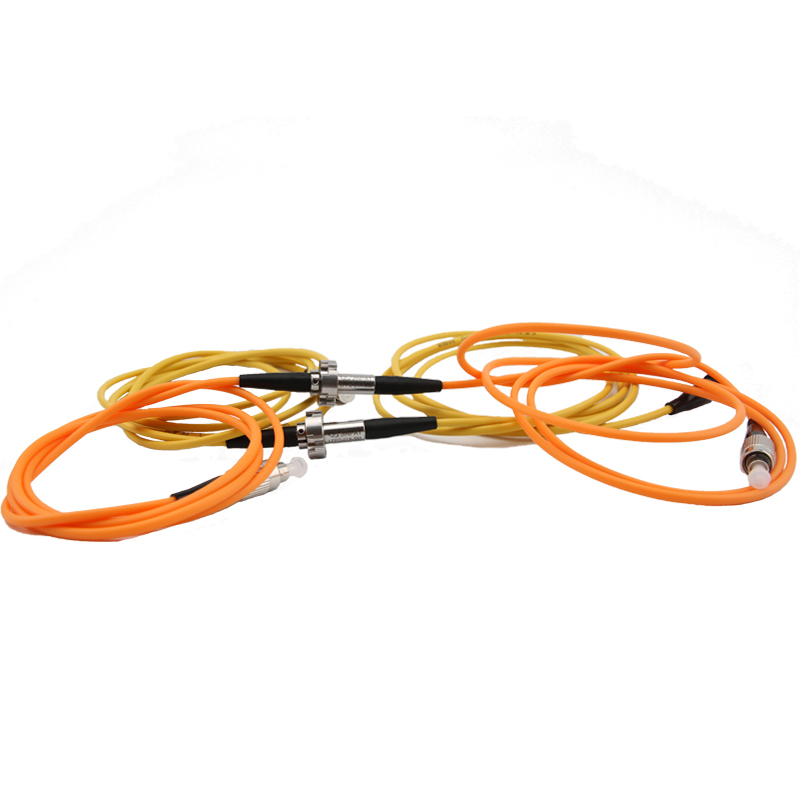

1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68

  • 1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
  • 1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
Place of Origin Guangdong, China
Nom de marque JINPAT
Model Number LPFO-01A
Minimum Order Quantity 1
Prix $190

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Fiber types SM or MM Channel number 1
Wavelength range SM:1270-1650nm, MM:650-1300nm Insertion loss <2dB
Insertion loss ripple <0.5dB Return loss ≥40dB
Max Optical power 23dBm Maximum speed 2000rpm
Working temperature -45～+80℃ Storage temperature -55~+85℃
Weight 10g (No tail cable and connection included) IP rating IP65 or IP68
Life cycle >200 million revolutions Connector types FC/SC/ST/LC (PC or APC)
Jacket types 0.9/2/3mm (Kevlar/PVC or Armor)
Mettre en évidence

1 channel fiber optic slip ring

,

fiber optic rotary joint IP65

,

SM MM slip ring 2000rpm
Description de produit
1 Channel Fiber Optic Slip Ring - SM/MM 2000rpm IP65/IP68 23dBm
Product Attributes
Type Electronic Accessories
Fiber types SM or MM
Channel number 1
Wavelength range SM:1270-1650nm
MM:650-1300nm
Insertion loss <2dB
Insertion loss ripple <0.5dB
Product Overview

LPFO-01A fiber optic rotary joints (also known as optical slip rings or optical rotary connectors) provide the optimal solution for transmitting high-capacity data and signals. These slip rings use optical fiber as the transmission medium and can be integrated with traditional electrical slip rings for hybrid power, signal, and high-speed data transmission.

1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68 0
Key Features
  • Optical fiber transmission ensures no leakage and no electrical interference
  • Compact and lightweight design
  • Contact-free operation with no friction, providing exceptional longevity (over 200 million revolutions)
  • Compatible with hybrid electrical slip ring integration
  • Pressure-compensated, sealed construction for harsh environments (including underwater to 7000m and space applications)
Technical Specifications
Fiber types SM or MM Connector types FC/SC/ST/LC (PC or APC)
Channel number 1 Estimated life cycle >200 million revolutions
Wavelength range SM:1270-1650nm
MM:650-1300nm		 Vibration MIL-STD-167-1A
Insertion loss <2dB Mechanical shock MIL-STD-810G
Insertion loss ripple <0.5dB IP rating IP65 or IP68
Return loss ≥40dB Maximum speed 2000rpm
Max Optical power 23dBm Working temperature -45℃ to +80℃
Package style Pigtails on both ends Storage temperature -55℃ to +85℃
Weight (approx.) 10g (excluding tail cable and connection) Jacket types 0.9/2/3mm (Kevlar/PVC or Armor)
Product Outline Drawing
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68 1
Application Industries
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68 2 1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68 3 1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68 4
